About This

• Several Ways to Connect DB9 to RS232 and RS485：For RS232 , connect to pins 2, 3, and 5. Pin 2 is Receive (RX), Pin 3 is Transmit (TX), and Pin 5 is Ground (GND). The other pins do not need to be connected. For RS485 , connection is usually made to pins 1 & 2 or 3 & 8. RS485 uses differential signals, so there is no distinction between receive and transmit. Typically, the connections are Pin 3 (+), Pin 8 (-), Pin 1 (+), and Pin 2 (-).

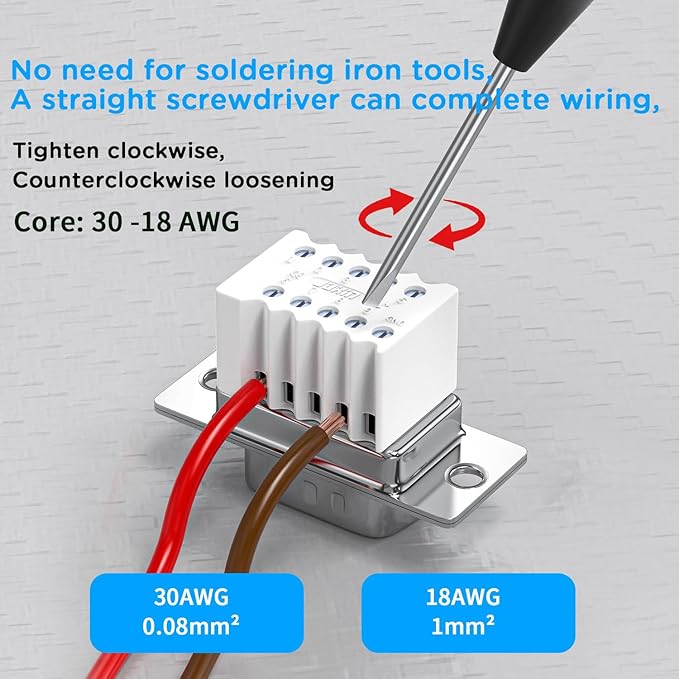

• Tool-Free, Solderless Installation – Skip the hassle of soldering with our user-friendly design. Simply insert your wires and tighten the screws for a secure connection in minutes, saving you valuable time on setup. Perfect for both DIY enthusiasts and professionals.

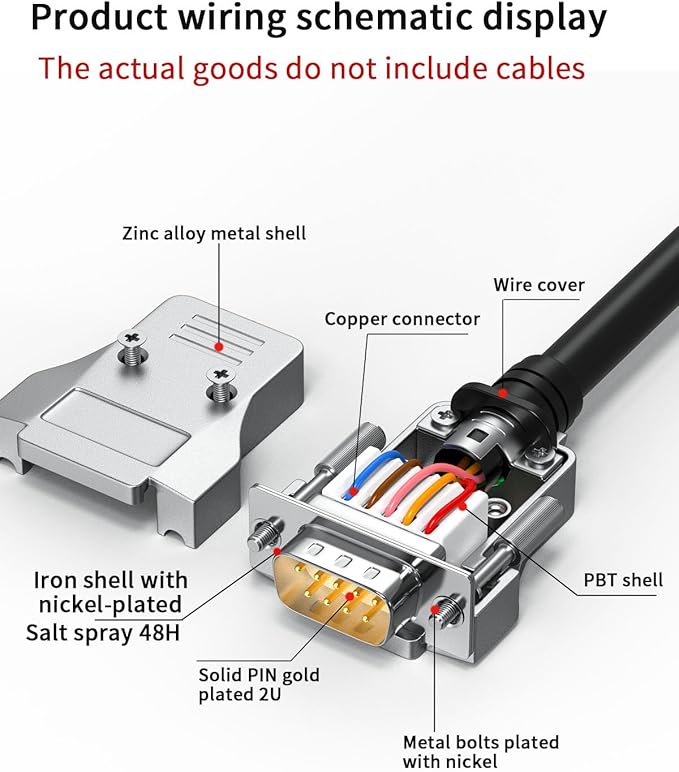

• Heavy-Duty Metal Housing – Built to withstand tough industrial environments, our DB9 adapter features a rugged metal shell that protects internal components from damage, corrosion, and wear. Ensures reliable, long-term performance for your RS232/RS485 devices.
• Ultra-Strong, Versatile Connections – Equipped with premium copper alloy terminals, our adapter delivers a rock-solid connection that resists up to 30lbs of pull force. Compatible with 18-30AWG wires, it works seamlessly with most serial cables for maximum flexibility.

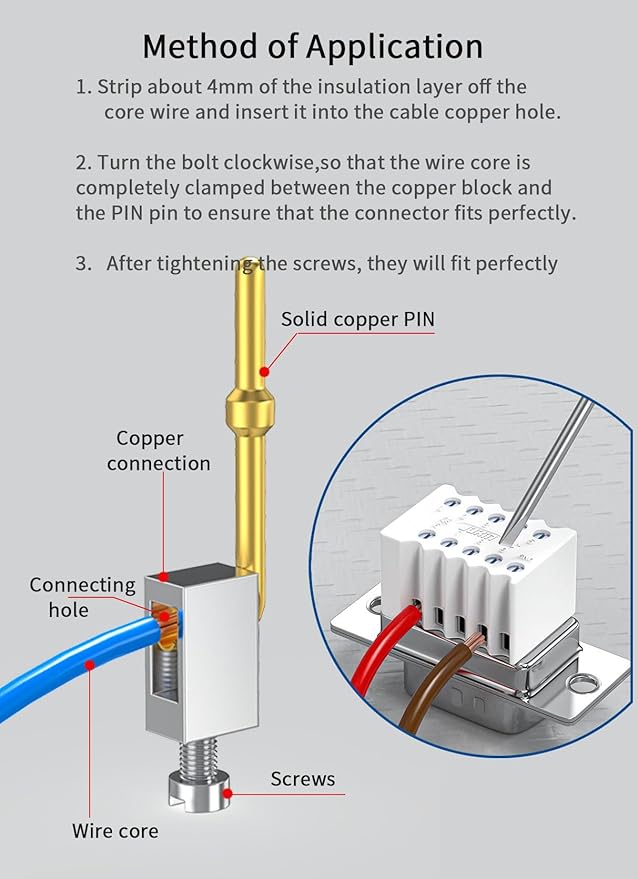

• Step-by-Step Simplicity – Installation couldn’t be easier: Strip 0.87in (22mm) of outer sheath and 0.16in (4mm) of core insulation, insert the wire into the terminal, and tighten the bolt. The secure clamp design guarantees a stable, interference-free connection every time.

Overview

• Compatible Devices : Laptop
• Connector Type : D-SUB 9
• Color : Silver
• Brand : JUXINICE
• Finish Type : Metallic
